Astro, Air Impact Wrench 1/2" (Ultra-Duty)
632.99
Overview

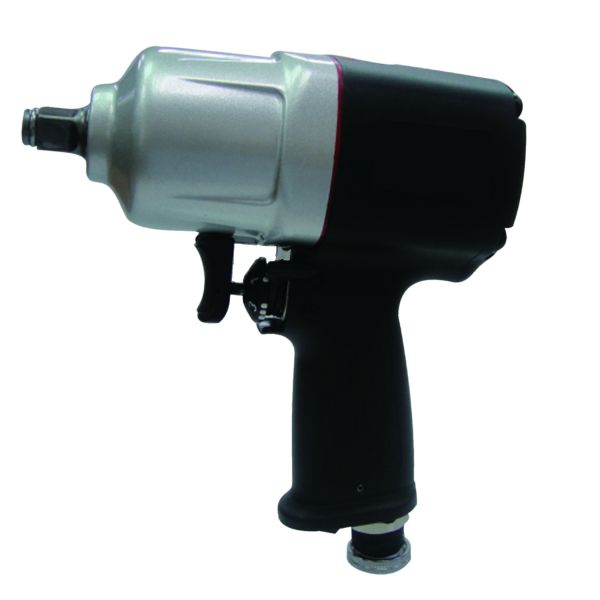

The Astro® Ultra-Duty 1/2" Air Impact Wrench (Model ASTRO8135) is engineered for maximum performance in compact spaces. It boasts an incredible power-to-weight ratio, delivering over 1,100 ft-lbs (1486 Nm) of nut-busting torque while maintaining a short body length of just 6.7" (170mm). [Image of Astro 1/2 inch ultra duty impact wrench] The tool features a refined Twin Hammer mechanism and a bias motor design for maximum torque in reverse. Unique to this model is a patented forward/reverse switch that allows users to shift between left-hand and right-hand operation within seconds. It also includes a 6-position power regulator and a feather-touch trigger for precise control.
SKU : ASTRO8135
Technical Specifications
| Specification | Value |
|---|---|
| Model | ASTRO8135 |
| Square Drive | 1/2" |
| Nut Busting Torque | > 1,100 ft-lb (1486 Nm) |
| Max. Torque (Reverse) | 780 ft-lb (1054 Nm) |
| Working Torque | 50 - 600 ft-lb (68 - 810 Nm) |
| Free Speed | 8000 RPM (+/- 10%) |
| Blows Per Minute | 1250 BPM |
Features & Air Specs
| Body Length | 6.7" (170 mm) |
| Mechanism | Twin Hammer + Bias Motor |
| Power Settings | 6 Positions (3 Forward / 3 Reverse) |
| Air Pressure | 90 Psi (6.35 kg/cm²) |
| Avg. Air Consumption | 4.00 CFM |
| Air Inlet | 1/4" NPT |
| Min. Hose Size | 3/8" (10 mm) ID |
| Sound Level | 96 dBA |
| Weight | 2.20 |
|---|---|
| Dimensions | 21 X 19.5 X 7.5 X cm |
| Brand | Astro |
| UOM | PCS |
