Astro, Air Impact Wrench 1" (2" Anvil / Pin-less)
2,298.00
Overview

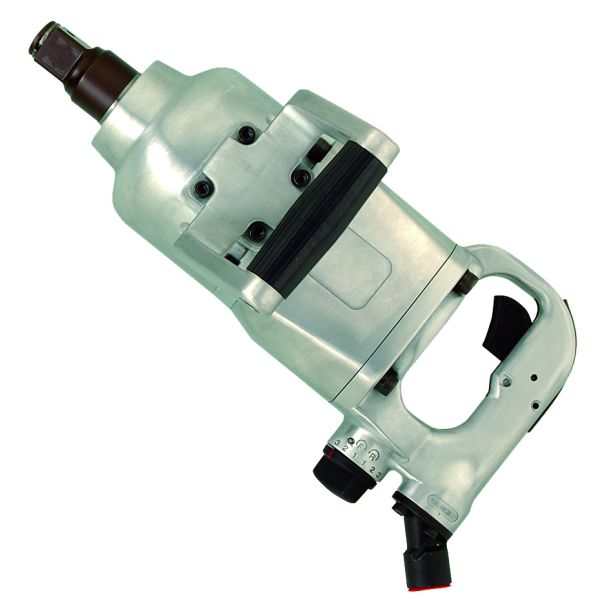

The Astro® 1" Air Impact Wrench (Model ASTRO1868) is a robust tool designed for tire work on trucks, buses, and off-road farm equipment. It features a highly efficient "Pin-less" impact mechanism that delivers maximum striking force with low vibration. Unlike the extended version, this model is equipped with a 2" anvil, making it compact and perfect for standard truck tire service demands. It includes a 6-vane air motor for high efficiency, a 6-position power regulator (3 forward/3 reverse), an upward air exhaust, and a swept-back side handle with a protective rubber boot.
SKU : ASTRO1868
Performance Specifications
| Specification | Value |
|---|---|
| Model | ASTRO1868 |
| Square Drive | 1" (with 2" Anvil) |
| Max. Torque | 1800 ft/lbs (2448 NM) |
| Working Torque Range | 300-1400 ft/lbs (408-1904 NM) |
| Free Speed | 5000 RPM |
| Blows Per Minute | 750 BPM |
| Mechanism | Pin-less Impact |
Air Requirements & Dimensions
| Air Inlet | 1/2" NPT |
| Min. Hose Size | 1/2" I.D. |
| Rec. Air Pressure | 90 Psi (6.35 kgs) |
| Overall Length | 16" (407 mm) |
| Net Weight | 24 lbs (10.89 kg) |
| Power Management | 6-Position (3 Fwd / 3 Rev) |
| Weight | 11.60 |
|---|---|
| Dimensions | 43 X 25 X 15.8 X cm |
| Brand | Astro |
| UOM | PCS |
