Astro, Air Impact Wrench 1" (6" Anvil / Pin-less)
2,323.00
Overview

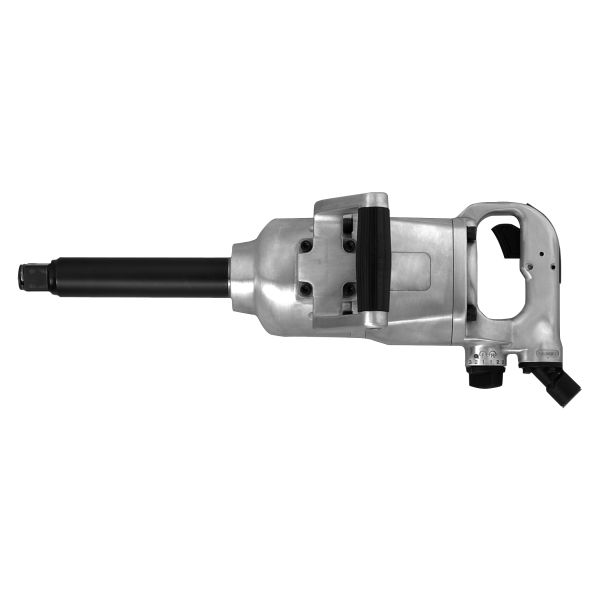

The Astro® 1" Air Impact Wrench (Model ASTRO1869) is a heavy-duty tool engineered specifically for tire work on trucks, buses, and off-road farm equipment. It features a robust "Pin-less" impact mechanism that maximizes striking force while maintaining low vibration for operator comfort. [Image of Astro 1869 air impact wrench] The tool is equipped with a high-efficiency 6-vane air motor and a 6" extended anvil, making it perfect for the demanding world of truck tire service. Additional features include a swept-back side handle, a protective rubber boot, an upward air exhaust (away from work), and a 6-position power regulator (3 forward / 3 reverse) for precise torque management.
SKU : ASTRO1869
Performance Specifications
| Specification | Value |
|---|---|
| Model | ASTRO1869 |
| Square Drive | 1" (with 6" Anvil) |
| Max. Torque | 1800 ft/lbs (2448 NM) |
| Working Torque Range | 300-1400 ft/lbs (408-1904 NM) |
| Free Speed | 5000 RPM |
| Blows Per Minute | 750 BPM |
| Mechanism | Pin-less Impact |
Air Requirements & Dimensions
| Air Inlet | 1/2" NPT (45° Angle) |
| Min. Hose Size | 1/2" I.D. |
| Rec. Air Pressure | 90 Psi (6.35 kgs) |
| Overall Length | 20.1" (510 mm) |
| Net Weight | 27 lbs (12.25 kg) |
| Power Management | 6-Position (3 Fwd / 3 Rev) |
| Weight | 11.60 |
|---|---|
| Dimensions | 55.8 X 19.3 X 13.4 X cm |
| Brand | Astro |
| UOM | PCS |
