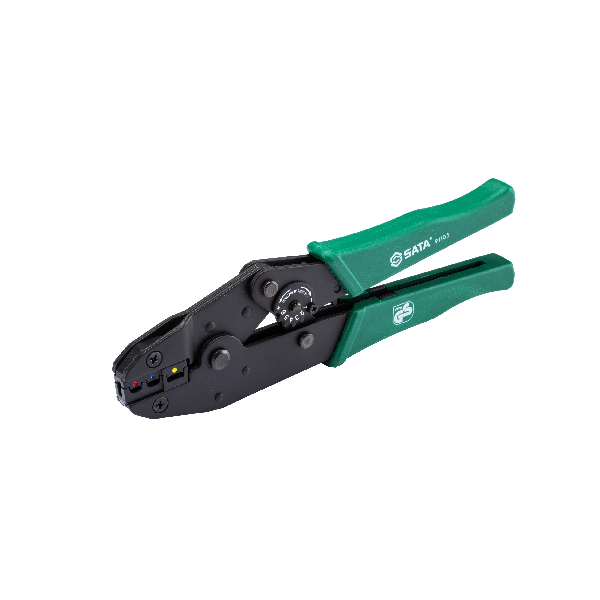

SATA, Crimping Pliers for Insulated Terminals 9" (229mm) | AWG 22-10
204.70
Overview
The SATA 9" Crimping Pliers (91105) are a professional tool designed specifically for crimping insulated terminals and connectors. Constructed from durable medium carbon steel plates, these pliers ensure structural stability without deformation or bending. The jaws feature color-coded dies to match standard insulated terminals: Red (22-18 AWG), Blue (16-14 AWG), and Yellow (12-10 AWG). The tool applies precise, moderate pressure to secure the wire without damaging the insulation. Additional features include a pressure adjustment button for customization and a unique mechanism where the jaws open automatically by pressing the glass fiber handles, ensuring ease of use and safety.
SKU : SATA91105ST
Technical Specifications
| Specification | Value |
|---|---|
| Product No. | 91105 |
| Size | 9" (approx. 229 mm) |
| Range (Red) | 22-18 AWG (0.5-1.0 mm²) |
| Range (Blue) | 16-14 AWG (1.5-2.5 mm²) |
| Range (Yellow) | 12-10 AWG (4.0-6.0 mm²) |
| Material | Medium Carbon Steel Plate |
| Handle Material | Glass Fiber |
| Application | Insulated Terminals |
| Net Weight | 0.59 kg |
| Weight | 0.59 |
|---|---|
| Brand | Sata |
| Made In | China |
| UOM | PCS |
