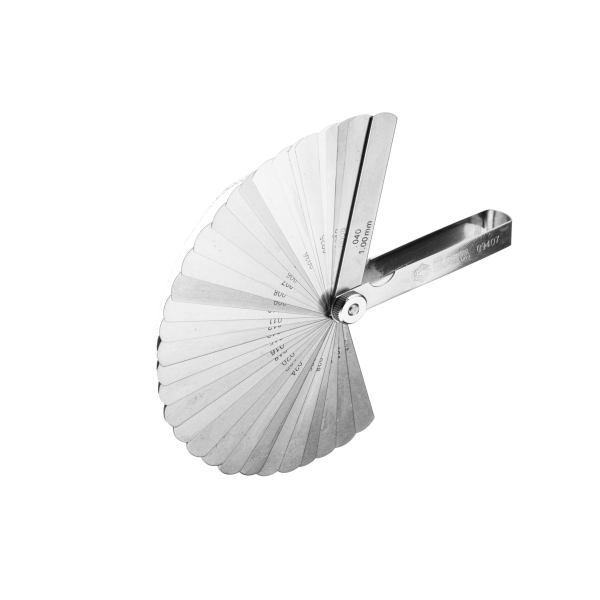

SATA, 32Pc. Feeler Gauges Set (0.02-1.00mm)
22.77
Overview
The SATA 32-Piece Feeler Gauges Set (Model 09407) is a high-precision measuring tool designed for checking clearances and gaps in mechanical assemblies. Constructed from durable Manganese (Mn) Steel, the blades feature a polished surface to ensure smooth insertion and accurate readings. The set includes 32 blades ranging from 0.02mm to 1.00mm, housed in a 3.5-inch long body. It supports both Metric and Imperial measurements, making it versatile for automotive valve adjustments and industrial machinery calibration.
SKU : SATA09407SJ
Technical Specifications
| Specification | Value |
|---|---|
| Product No. | 09407 |
| Blade Count | 32 Pieces |
| Measurement Range | 0.02 - 1.00 mm |
| Material | Manganese Steel (Mn Steel) |
| Finish | Polished Surface |
| Body Length | 3.5" |
| Format | Metric & Imperial |
| Net Weight | 0.12 kg |
Included Blade Sizes (mm)
| Sizes | 0.02, 0.03, 0.04, 0.05, 0.06, 0.07, 0.08, 0.09, 0.10, 0.13, 0.15, 0.18, 0.20, 0.23, 0.25, 0.28, 0.30, 0.33, 0.38, 0.40, 0.45, 0.50, 0.55, 0.60, 0.63, 0.65, 0.70, 0.75, 0.80, 0.85, 0.90, 1.00 |
| Weight | 0.12 |
|---|---|
| Brand | Sata |
| Made In | China |
| UOM | SET |
