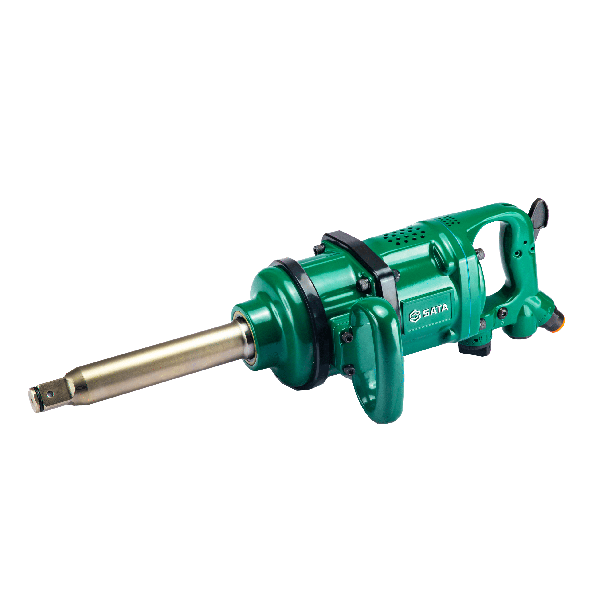

SATA, 1" Drive Heavy Duty Air Impact Wrench (4000 N·m) | 9" Long Anvil
2,818.65
Overview
The SATA 1" Drive Heavy Duty Air Impact Wrench (Model 01133) is a powerhouse tool designed for the most demanding industrial and automotive applications. Delivering a massive Maximum Reverse Torque of 4000 N·m, it is perfectly suited for removing and installing tires on heavy trucks and large passenger vehicles, as well as repairing heavy-duty vehicle chassis and large mechanical equipment. It features a 9-inch extended output shaft (anvil) for reaching deep wheel wells. Critical components undergo vacuum thermal treatment and ultra-low temperature quenching, ensuring exceptional hardness, toughness, and wear resistance. Despite its immense power, it is engineered to be relatively lightweight (16.8 kg) to reduce operator fatigue.
SKU : SATA01133SC
Technical Specifications
| Specification | Value |
|---|---|
| Product No. | 01133 |
| Drive Size | 1" Square Head |
| Max Reverse Torque | 4000 N·m |
| Operating Torque | 3000 N·m |
| Free Speed | 4000 RPM |
| Bolt Capacity | M36 |
| Output Shaft Length | 9" (Long Anvil) |
Air Requirements & Dimensions
| Air Consumption (Avg) | 16 CFM |
| Working Pressure | 8 kgf/cm² |
| Air Inlet Size | 1/2" |
| Min Hose Size | 12.5 mm |
| Noise Level | 110 dB(A) |
| Net Weight | 16.8 kg |
| Dimensions (LxWxH) | 623 x 140 x 176 mm |
| Weight | 16.80 |
|---|---|
| Dimensions | 623 x 140 x 176 mm |
| Brand | Sata |
| Made In | China |
| UOM | PCS |
