RIDGID, 1224 Threading Machine | 1/2" - 4" BSPT | 240V 60Hz | Induction Motor
32,757.75
Overview

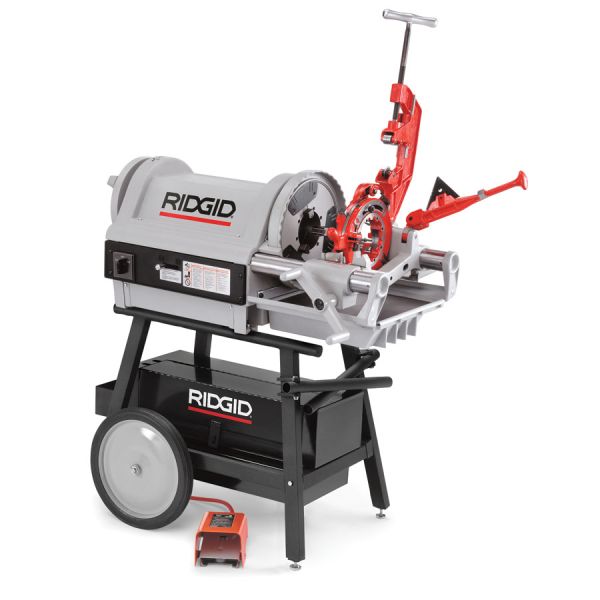

The RIDGID 1224 Threading Machine (240V 60Hz) is the industry standard for threading a wide range of pipe, configured specifically for BSPT (British Standard Pipe Taper) threads. Capable of handling pipe from 1/2" to 4", this machine is powered by a quiet 1-1/2 HP induction motor, making it suitable for indoor and enclosed job sites.
The 1224 features a 2-speed gear box that optimizes operation: 36 RPM for smaller sizes (up to 2") and 12 RPM for larger sizes (2-1/2" to 4") or tougher materials like stainless steel. Its through-the-head oiling system ensures constant lubrication, resulting in high-quality threads and longer die life. This specific model is configured for 60Hz electrical systems.
SKU : RIDGID26122
Detailed Technical Specifications
| Feature / Specification | Detail |
|---|---|
| Model Number | 26122 (1224) |
| Thread Type | BSPT (British Standard) |
| Voltage / Frequency | 240V / 60 Hz |
| Pipe Capacity | 1/4" - 4" (6mm - 100mm) |
| Motor | 1-1/2 HP Induction Motor (Low Noise) |
| Spindle Speed | 36 RPM (1/4"-2") | 12 RPM (2-1/2"-4") |
| Controls | Rotary Forward/Off/Reverse & Foot Switch |
| Die Heads Included | No. 911 (1/4"-2") & No. 914 (2-1/2"-4") |
| Oiling System | Through-head, adjustable flow |
| Weight | 230.88 |
|---|---|
| Dimensions | 118.9 X 83.3 X 52.1 X cm |
| Brand | Ridgid |
| Made In | USA |
| UOM | PCS |
