Rhino, Magnetic Drilling Machine 100mm – 1800W (220V)
6,316.00
Product Description

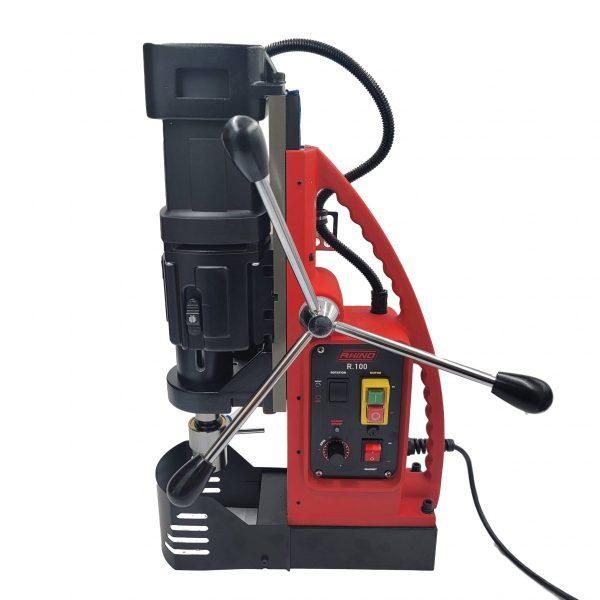

The Rhino R.100 is a heavy-duty magnetic core drilling machine engineered for holes up to 100mm. Featuring an extremely powerful 1800W motor and a 4-speed gearbox, this machine is particularly suited for tapping (M3 to M30) thanks to its right/left rotating functionality and electronic speed adjustment. It offers massive magnetic holding force (2,500 kg) for stability during the toughest jobs.
SKU : RHINO-ECO100
Cutting & Tapping Capabilities
| Feature | Metric | Imperial |
|---|---|---|
| Annular Cutters | Ø 12 – 100 mm | Ø 1/2 – 4" |
| Twist Drills | Ø 1 – 31.75 mm | Ø 1/16 – 1 1/4" |
| Threading (Tapping) | M3 – M30 | 1/8 – 1 3/16" |
| Countersinking | Ø 10 – 105 mm | Ø 3/8 – 4 1/8" |
| Stroke | 260 mm | 10 1/4" |
| Spindle Type | MT3 / Weldon 19.05 mm | MT3 / 3/4" |
Power & Motor (4-Speed)
| Specification | Value |
|---|---|
| Motor Power | 1,800 W (16.4 A) |
| Total Power | 1,950 W (17.7 A) |
| Speed (No Load) | (I) 40-110 / (II) 65-180 / (III) 140-380 / (IV) 220-610 rpm |
| Speed (Loaded) | (I) 85 / (II) 152 / (III) 270 / (IV) 480 rpm |
| Power Source | 220 – 240V AC / 50 – 60 Hz |
Dimensions & Weight
| Machine Size (L x W x H) | 340 x 310 x 510-710 mm |
| Magnet Dimensions | 220 x 110 x 64 mm |
| Magnetic Force | 2,500 kg (5,512 lbs) |
| Net Weight | 28 kg (61.7 lbs) |
Additional Information
| Origin | Made in China |
| Features | Right/Left Rotation, Electronic Speed Adjustment |
| Weight | 28.00 |
|---|---|
| Brand | Rhino |
| UOM | PCS |
