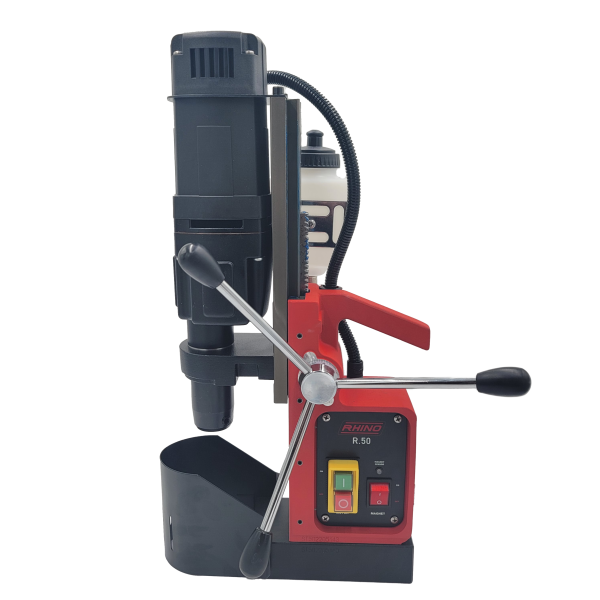

Rhino Magnetic Drilling Machine 50mm – 1200W (220V)
2,748.99
Product Description
The Rhino 50mm is a compact yet powerful magnetic drilling machine designed for industrial use. Weighing only 13.5 kg, it is highly portable without sacrificing performance, thanks to its 1200W motor and 2-speed gearbox (380/690 rpm). It is capable of drilling holes up to 50mm and offers a strong magnetic adhesion of 1,600 kg for maximum stability and safety.
SKU : RHINO-ECO050
Cutting Capabilities
| Feature | Metric | Imperial |
|---|---|---|
| Annular Cutters | Ø 12 – 50 mm | Ø 7/16 – 2" |
| Twist Drills | Ø 1 – 20 mm | Ø 1/16 – 13/16" |
| Countersinking | Ø 10 – 50 mm | Ø 3/8 – 2" |
| Stroke | 155 mm | 6 3/32" |
| Spindle Type | Weldon 19.05 mm | 3/4" |
Power & Performance
| Specification | Value |
|---|---|
| Motor Power | 1,200 W (10.0 A) |
| Total Power | 1,250 W (10.4 A) |
| Speed (No Load) | (I) 380 rpm / (II) 690 rpm |
| Speed (Loaded) | (I) 235 rpm / (II) 425 rpm |
| Power Source | 220 – 240V AC / 50 – 60 Hz |
Dimensions & Weight
| Machine Size (L x W x H) | 320 x 200 x 378-533 mm |
| Magnet Dimensions | 168 x 84 x 42 mm |
| Magnetic Force | 1,600 kg (3,527 lbs) |
| Net Weight | 13.5 kg (29.8 lbs) |
Shipping & Logistics
| Country of Origin | China |
| Unit of Measure | PCS |
| Package Dimensions | 245 x 160 x 385-550 mm |
| Weight | 13.50 |
|---|---|
| Brand | Rhino |
| UOM | PCS |
