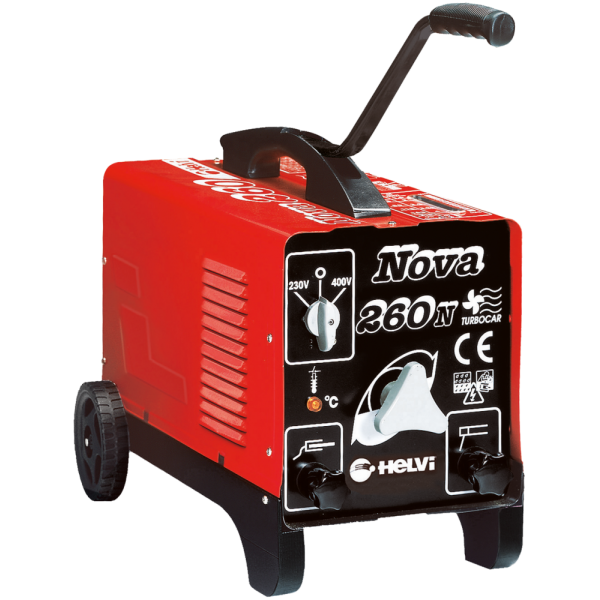

HELVI, Welding Machine- Arc 260N 220/380V.
1,084.00
DESCRIPTION
Single-phase AC welding units, on wheels, with cooling fan. Stepless control of the welding current. Thermostatic overload protection.
TECHNICAL DATA
Input voltage (1ph) 230/400V - 50/60Hz
Power 60% 4,4 KVA
No load output voltage 48 V
Amp. min-max 35 ÷ 190 A±10%
Amp. 60974-1 -
? E 1,6 ÷ 4 mm
Insulation H
Protec. Degree IP21S
Machine (LxWxH) 670x340x585 mm
Package (LxWxH) 485x285x325 mm
Weight box/net 24 / 22,9 Kg
Code 99200085
SKU : HELVI-260N
DESCRIPTION
Single-phase AC welding units, on wheels, with cooling fan. Stepless control of the welding current. Thermostatic overload protection.
TECHNICAL DATA
Input voltage (1ph) 230/400V - 50/60Hz
Power 60% 4,4 KVA
No load output voltage 48 V
Amp. min-max 35 ÷ 190 A±10%
Amp. 60974-1 -
? E 1,6 ÷ 4 mm
Insulation H
Protec. Degree IP21S
Machine (LxWxH) 670x340x585 mm
Package (LxWxH) 485x285x325 mm
Weight box/net 24 / 22,9 Kg
Code 99200085
