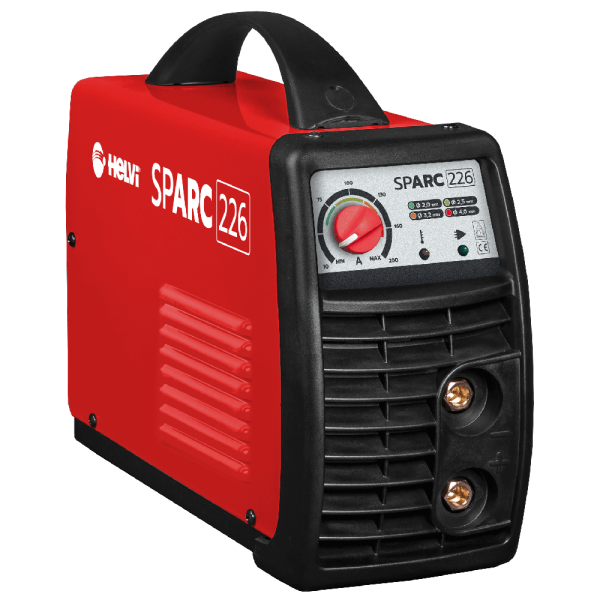

HELVI, Inverter Sparc Welding Machine 226 | 200A MMA Stick Welder | 220-230V

1,219.00

Overview

The HELVI Sparc 226 Inverter Welding Machine is a compact and user-friendly MMA (Stick) welder designed to deliver optimum performance for home and hobby applications. Weighing just 7 kg, this lightweight unit operates on a 230V single-phase supply and provides an adjustable current range from 10 to 200 Amps.

Versatility is key with the Sparc 226; it is compatible with all commercial electrode types, including rutile (6013), basic (7018), and stainless steel, handling diameters from 1.6mm up to 4.0mm. To ensure ease of use and safety, it comes equipped with advanced features such as overvoltage protection, over-temperature cut-off, and anti-sticking control, preventing electrode adhesion for a smoother welding experience.

SKU : HELVI-226

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product Description

Detailed Technical Specifications

Feature / Specification	Detail
Model	Sparc 226 (HELVI-226)
Input Voltage	220-230V (1ph) - 50/60Hz
Current Range (Amp Min-Max)	10 ÷ 200 A
Duty Cycle (40°C)	200A @ 25% \| 130A @ 60% \| 100A @ 100%
Power (60%)	3.2 KW
No Load Voltage	70 V
Electrode Diameter	Ø 1.6 ÷ 4.0 mm
Electrode Types	6013 (Rutile), 7018 (Basic), Stainless Steel
Protection Features	Overvoltage, Over-temperature, Anti-sticking
Insulation / Protection Class	Class H / IP22S
Dimensions (LxWxH)	285 x 120 x 255 mm
Net Weight	7.0 Kg
