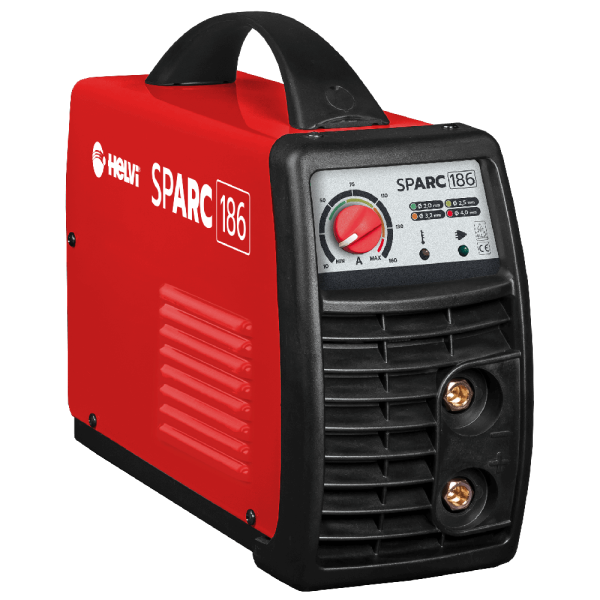

HELVI, Inverter Sparc Welding Machine 186 | 160A MMA Stick Welder | 220-230V

793.50

Sold Out
Overview

The HELVI Sparc 186 Inverter Welding Machine is a highly portable and efficient MMA (Stick) welder, perfect for home maintenance and hobbyist projects. Operating on a standard 230V single-phase supply, this unit offers a versatile current range of 10 to 160 Amps, making it suitable for a wide variety of light-to-medium welding tasks.

Designed for ease of use, it delivers optimum performance with all commercial electrode types, including rutile (6013), basic (7018), and stainless steel (diameters 1.6mm to 4.0mm). Despite its compact size and light weight (approx. 6 kg), it packs essential safety features such as overvoltage protection, over-temperature control, and anti-sticking technology, ensuring a smooth and stable arc for beginners and professionals alike.

SKU : HELVI-186
Detailed Technical Specifications
Feature / Specification Detail
Model Sparc 186 (HELVI-186)
Input Voltage 220-230V (1ph) - 50/60Hz
Current Range (Amp Min-Max) 10 ÷ 160 A
Duty Cycle (40°C) 160A @ 25% | 100A @ 60% | 80A @ 100%
Power (60%) 2.5 KW
No Load Voltage 70 V
Electrode Diameter Ø 1.6 ÷ 4.0 mm
Electrode Types 6013 (Rutile), 7018 (Basic), Stainless Steel
Protection Features Overvoltage, Over-temperature, Anti-sticking
Insulation / Protection Class Class H / IP22S
Dimensions (LxWxH) 285 x 120 x 255 mm
Net Weight 5.9 Kg
More Information
Weight 6.20
Dimensions 285 x 120 x 255 mm
Brand Helvi
Power Source Electricity Operated
Made In Italy
UOM PCS
